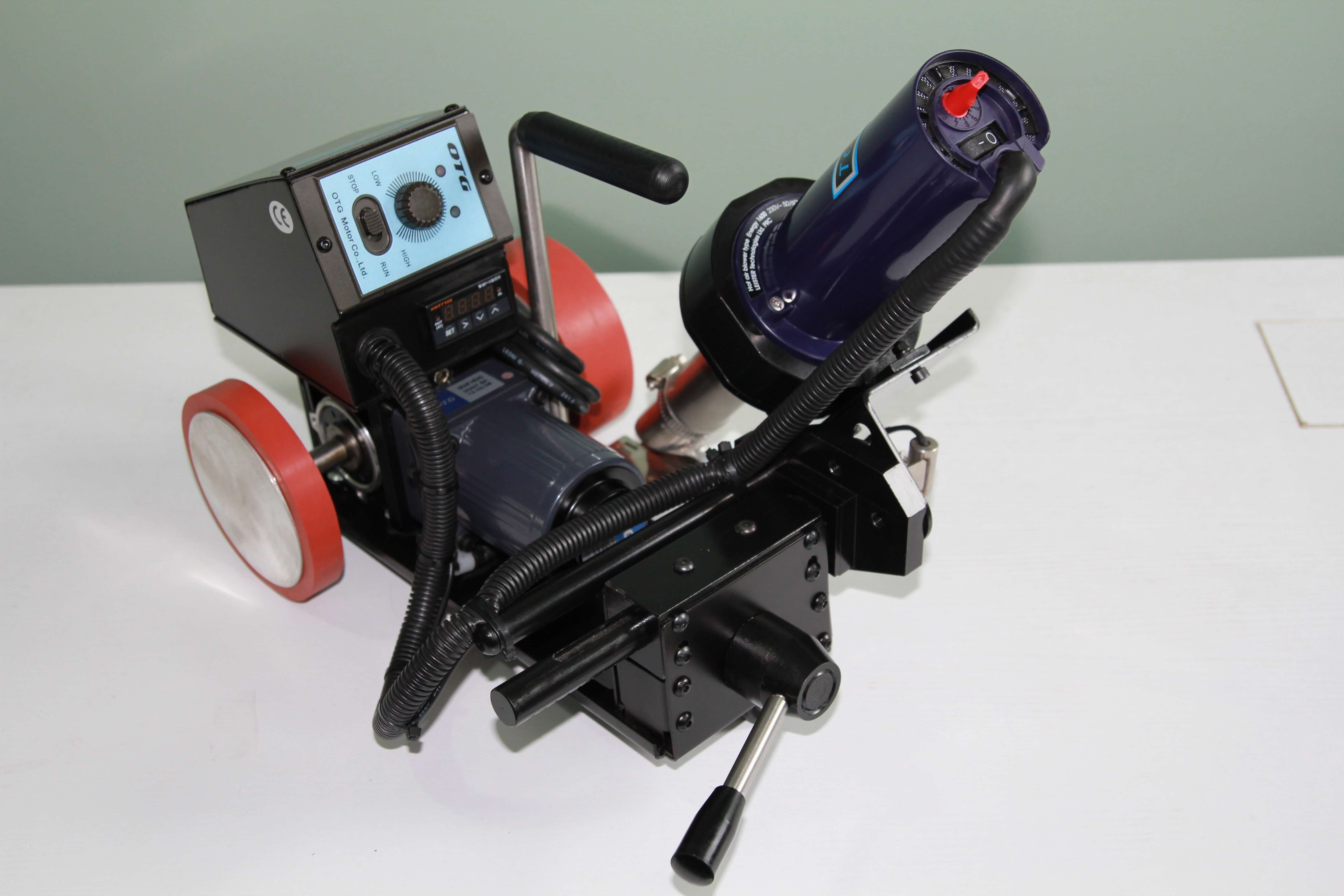

Seaming Machine





Electric heating: 2000W
Motor: 15W
Voltage: 220V 50/60HZ
Welding Area: 3cm
Working Temperature: 400degree
Specification: L: 50cm, W: 30cm, H: 28cm
Gross Weight: 14.5kgs
Packing size: 50*45*35cm
Package: Hard plastic case with carton outside

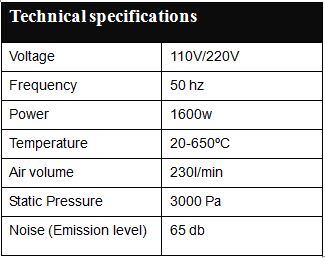

  Hotair gun



1

2





The weld tool is a professional high level welding heat gun.
Applications : Roofing, tunnels impermeabilization, water reservoirs, truck covers, big tents, banners, big signs, swimming pool covers, shrinking, tarpaulins, etc.
Note : This professional tool uses a ceramic heating element not covered by warranty, as its life depends on proper use by operator.

1






  TP-FD-01



1

2

2

2





Features
◎ Simple installation, can be mounted onto nearly any table.
◎ User friendly operating system.
◎ Welding speeds of up to 12 m (39 ft.)/min.
◎ One hem guide – four applications, Hems: 20/30/40 mm (0.8/1.2/1.6 inches); Pole pockets: Up to 180 mm (7 inches);
Hems with rope and Lap welding.
◎ Perfect design for heat-seaming of banner, tarpaulin and tents.
◎ It can be applied on wide range of applications such as connecting keders, grommet hems, welding pocket and overlapping.

Technical Specifications
Model
Voltage
Power
Heat Temperature Air Flow
Welding Speed Overlap Width
Open Welding Width
Nozzle Width Dimensions (L x W x H) Net Weight
Applications
JC-3600-TM
AC110V 60HZ
3600W
50-620°C (122- 1148 °F) Adjustable
70%-100% Adjustable
12 m (39 ft.)/min
1-43 cm (0.4-17 inches)
180 cm (71 inches) (welding width + opening width) 20/30/40 mm (0.8/1.2/1.6 inches)
350 x 350 x 560 mm (13.8 x 13.8 x 22 inches)
20 kg (44 lbs) Including supporting frame
